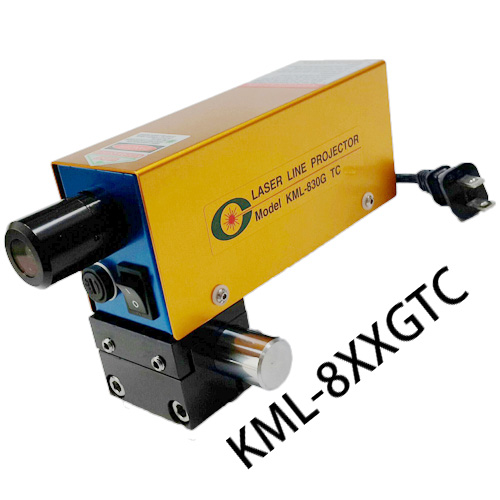

KML-8XXG TC SERIES
Temp. Controlled LASER LINE
PROJECTOR
Feature：
●Japan's industrial-grade laser diode
●Laser diodes 25°C constant temperature control
●Laser diode /optical lenses confined to deal
with Nitrogen
●Idemitsu patent adjustable lens
●Industrial design, high stability
●Long life
●Low installation height
SPECIFICATIONS：
Model：KML-810GTC
Wavelength：510 ~ 530 nm GREEN
Output Power：< 10 mW
Project Distance：< 10 m
Line Length：9 ~ 10 m
Based on indoor lighting 300~500 lux
Fan Angle：
Line Thickness：≦ 3.0 mm
Input Voltage：AC 90 ~ 260 V 50/60 Hz
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲb
Lifetimes：> 40,000 hr
Dimensions：L185 X W50 X H65 (mm)
Weight：750 ± 20 g
Model：KML-820GTC
Wavelength：510 ~ 530 nm GREEN
Output Power：< 20 mW
Project Distance：< 20 m
Line Length：15 ~ 20 m
Based on indoor lighting 300~500 lux
Fan Angle：
Line Thickness：≦ 4.0 mm
Input Voltage：AC 90 ~ 260 V 50/60 Hz
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲb
Lifetimes：> 40,000 hr
Dimensions：L185 X W50 X H65 (mm)
Weight：750 ± 20 g
Model：KML-830GTC
Wavelength：510 ~ 530 nm GREEN
Output Power：< 30 mW
Project Distance：< 30 m
Line Length：25 ~ 30 m
Based on indoor lighting 300~500 lux
Fan Angle：
Line Thickness：≦ 5.0 mm
Input Voltage：AC 90 ~ 260 V 50/60 Hz
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲb
Lifetimes：> 40,000 hr
Dimensions：L185 X W50 X H65 (mm)
Weight：750 ± 20 g

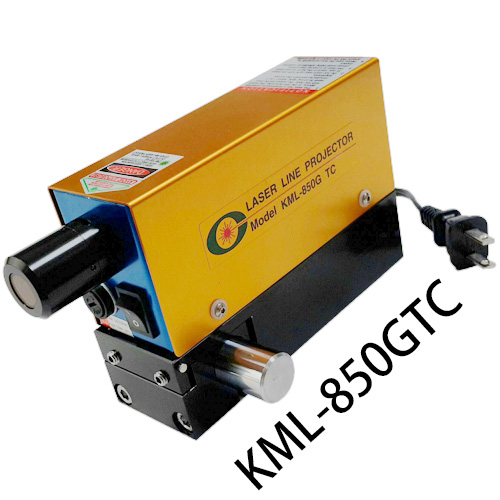

Model：KML-850GTC
Wavelength：510 ~ 530 nm GREEN
Output Power：< 50 mW
Project Distance：< 50 m
Line Length：40 ~ 50 m
Based on indoor lighting 300~500 lux
Fan Angle：
Line Thickness：≦ 6.0 mm
Input Voltage：AC 90 ~ 260 V 50/60 Hz
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲb
Lifetimes：> 40,000 hr
Dimensions：L185 X W50 X H103(mm)
Weight：1,050 ± 20 g
Applications：
● Wood working
● Stone working
● Rubber processing
● Metal workin
● Garment processing
Remarks：
1.The line length and line width of the
projection will vary depending on the
projection distance, angle, material,
color or illumination.
2.Special specifications can be requested.
Example：
 |
