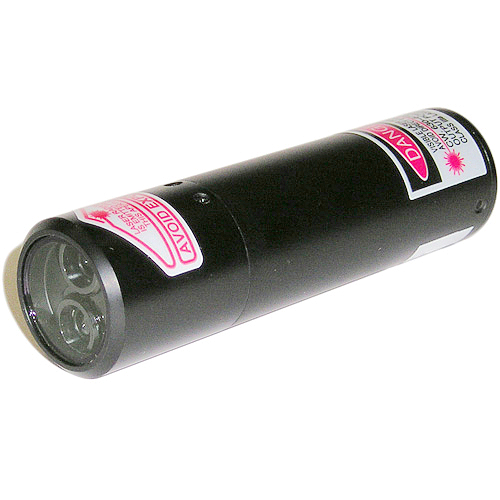

KML-6XXXC SERIES
Cross - Mark LASER PROJECTOR
Feature：
● Japan's industrial-grade laser diode
● Industrial design, high stability
● AVR+APC Control Circuit
● Long life
SPECIFICATIONS：

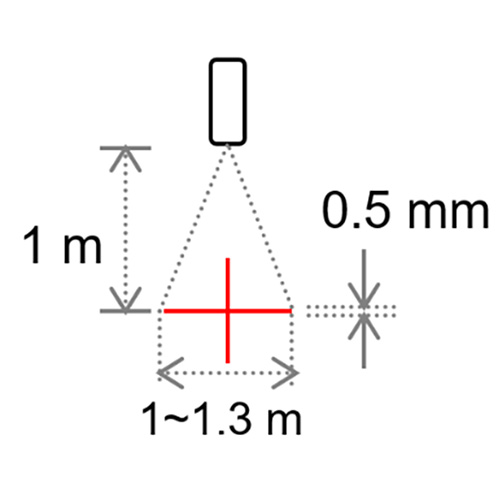

Model：KML-6301C
Wavelength：630 ~ 650 nm RED
Output Power：< 1 mW each line
Project Distance：1m
Line Length：1 ~ 1.3 m each line
Line Thickness：0.5 mm Focus Fixed
Input Voltage：5 ~ 8 VDC
Operating Current：< 70 mA
Operating Temp.：– 10 ~ +50 °C
Safety IP Class：IP Class Ⅱ
IP Class：IP 64
Lifetimes：> 35,000 hr
Dimensions：D 25 X L 90 (mm)
Weight：75 ± 5 g

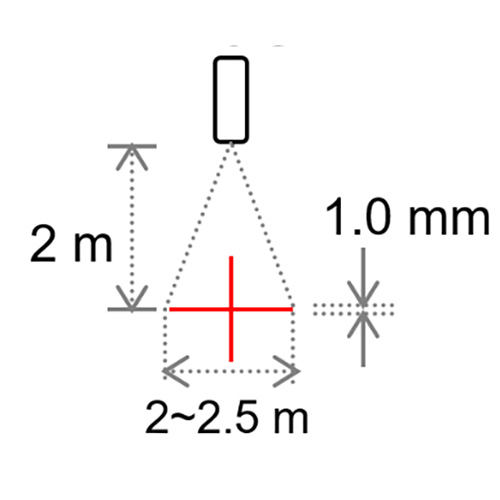

Model：KML-6303C
Wavelength：630 ~ 650 nm RED
Output Power：< 3 mW each line
Project Distance：2m
Line Length：2 ~ 2.5 m each line
Line Thickness：1 mm Focus Fixed
Input Voltage： 5 ~ 8 VDC
Operating Current：< 70 mA
Operating Temp.：– 10 ~ +50 °C
Safety IP Class：IP Class Ⅲa
IP Class：IP 64
Lifetimes：> 35,000 hr
Dimensions：D 25 X L 90 (mm)
Weight：75 ± 5 g

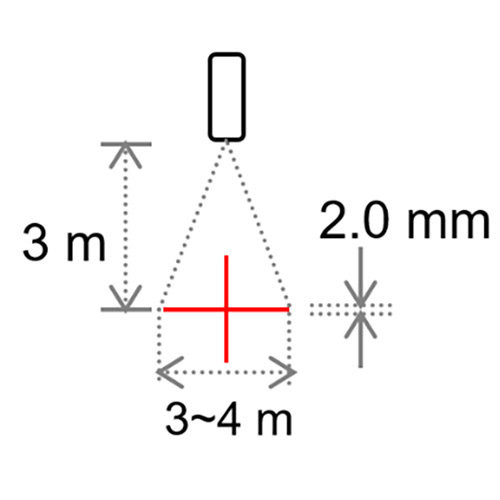

Model：KML-6305C
Wavelength：630 ~ 650 nm RED
Output Power：< 5 mW each line
Project Distance：3m
Line Length：3 ~ 4 m each line
Line Thickness：2 mm Focus Fixed
Input Voltage：5 ~ 8 VDC
Operating Current：< 70 mA
Operating Temp.：– 10 ~ +50 °C
Safety IP Class：IP Class Ⅲb
IP Class：IP 64
Lifetimes：> 35,000 hr
Dimensions：D 25 X L 90 (mm)
Weight：75 ± 5 g
Model： KML-6XXXC-24V
Wavelength：630 ~ 650 nm RED
Output Power：1/3/5 mW each line
Project Distance：1 / 2 / 3 m
Line Length：1 / 2 / 3 m each line
Line Thickness：0.5 / 1 / 2 mm
Focus Fixed
Input Voltage： 24 VDC ± 10%
Operating Current：< 70 mA
Operating Temp.：– 10 ~ +50 °C
Safety IP Class：IP Class Ⅲa、Ⅲb
IP Class：IP 64
Lifetimes：> 35,000 hr
Dimensions：D 25 X L 90 (mm)
Weight：75 ± 5 g

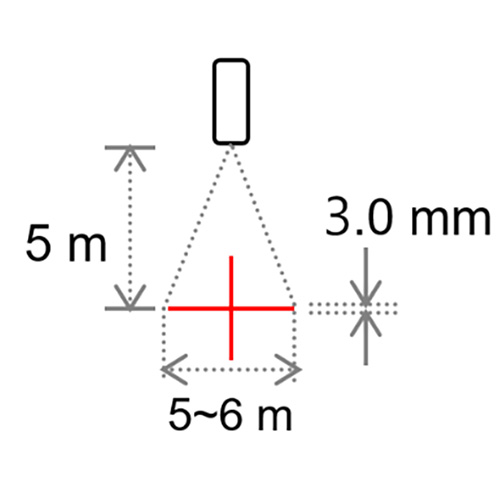

Model：KML-6310C
Wavelength：630 ~ 650 nm RED
Output Power：< 10 mW each line
Project Distance：5 m
Line Length：5 ~ 6 m each line
Line Thickness：3 mm Focus Fixed
Input Voltage：5 ~ 8 VDC
Operating Current：< 220 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅱ
IP Class：IP 64
Lifetimes：> 35,000 hr
Dimensions：D 25 X L 90 (mm)
Weight：75 ± 5 g

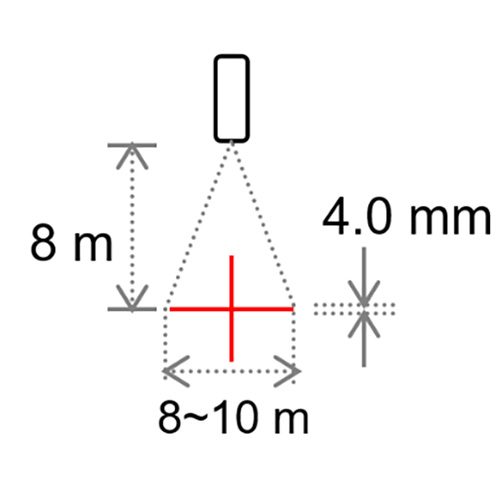

Model：KML-6320C
Wavelength：630 ~ 650 nm RED
Output Power：< 20 mW each line
Project Distance：8 m
Line Length：8 ~ 10 m each line
Line Thickness：4 mm Focus Fixed
Input Voltage：5 ~ 8 VDC
Operating Current：< 220 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲa
IP Class：IP 64
Lifetimes：> 35,000 hr
Dimensions：D 25 X L 90 (mm)
Weight：75 ± 5 g

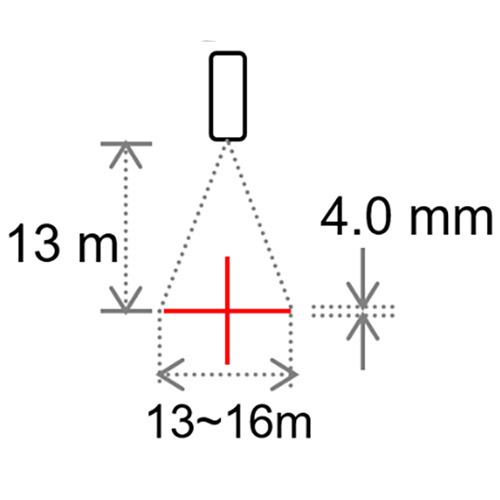

Model：KML-6330C
Wavelength：630 ~ 650 nm RED
Output Power：< 30 mW each line
Project Distance：13 m
Line Length：13 ~ 16 m each line
Line Thickness：4 mm Focus Fixed
Input Voltage：5 ~ 8 VDC
Operating Current：< 220 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲb
IP Class：IP 64
Lifetimes：> 35,000 hr
Dimensions：D 25 X L 90 (mm)
Weight：75 ± 5 g
Model： KML-6XXXC-24V
Wavelength：630 ~ 650 nm RED
Output Power：10/20/30 mW each line
Project Distance：5 / 8 / 13 m
Line Length：6 / 10 / 16 m each line
Line Thickness：3 / 4 mm Focus Fixed
Input Voltage： 24 VDC ± 10%
Operating Current：< 220 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲa、Ⅲb
IP Class：IP 64
Lifetimes：> 35,000 hr
Dimensions：D 25 X L 90 (mm)
Weight：75 ± 5 g
Applications：
● Garment processing
● Metal working
● Paper processing
● Sewing processing
● Bicycle processing
● Print processing
Remarks：
1.The line length and line width of the
projection will vary depending on the
projection distance, angle, material,
color or illumination.
2.Special specifications can be requested.
Example：
 |
